Nokia mobile phones processors
model: type: processor type: architecture: frequency: additional:
Nokia 3230 RM-51 32-bit RISC CPU ARM-9 123 MHz
Nokia 3600 NHM-10 32-bit RISC CPU ARM-9 104 MHz
Nokia 3620 NHM-10(X) 32-bit RISC CPU ARM-9 104 MHz
Nokia 3650 NHL-8 32-bit RISC CPU ARM-9 104 MHz
Nokia 3660 NHL-8X 32-bit RISC CPU ARM-9 104 MHz
Nokia 5700 XpressMusic RM-230 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia 5700b XpressMusic RM-302 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia 6120c-1 Classic RM-243 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia 6120c-5 Classic RM-310 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia 6121c Classic RM-308 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia 6260 RM-25 32-bit RISC CPU ARM-9 123 MHz
Nokia 6290 RM-176 Freescale MXC-300-xx ARM-11 369 MHz
Nokia 6600 NHL-10 32-bit RISC CPU ARM-9 104 MHz
Nokia 6620 NHL-12 32-bit RISC CPU ARM-9 150 MHz
Nokia 6630 RM-1 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia 6670 RH-67 32-bit RISC CPU ARM-9 123 MHz
Nokia 6670b RH-68 32-bit RISC CPU ARM-9 123 MHz
Nokia 6680 RM-36 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia 6681 RM-57 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia 6682 RM-58 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia 7610 RM-51 32-bit RISC CPU ARM-9 123 MHz
Nokia 7610b RH-52 32-bit RISC CPU ARM-9 123 MHz
Nokia 7650 NHL-2(NA) 32-bit RISC CPU ARM-9 104 MHz
Nokia 770 Internet Tablet SU-18 TI OMAP 1710 ARM-926 220 MHz
Nokia 7710 RM-12 32-bit RISC CPU ARM-9 150 MHz
Nokia 9210 Communicator RAE-3(N) 32-bit RISC CPU ARM-9 52 MHz
Nokia 9210c Communicator RAE-3(N) 32-bit RISC CPU ARM-9 52 MHz
Nokia 9210i Communicator RAE-5(N) 32-bit RISC CPU ARM-9 52 MHz
Nokia 9290 Communicator RAB-3(N) 32-bit RISC CPU ARM-9 52 MHz
Nokia 9300 RAE-6 TI OMAP 1510 ARM-925 150 MHz
Nokia 9300b RA-4 TI OMAP 1510 ARM-925 150 MHz
Nokia 9300i RA-8 TI OMAP 1510 ARM-925 150 MHz
Nokia 9500 Communicator RA-2 TI OMAP 1510 ARM-925 150 MHz
Nokia 9500b Communicator RA-3 TI OMAP 1510 ARM-925 150 MHz
Nokia E50-2 RM-171 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E50-1 RM-170 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E60-1 RM-49 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E61-1 RM-89 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E61i-1 RM-227 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E62-1 RM-88 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E62-1 RM-88A TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E65-1 RM-208 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E70-1 RM-10 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E70-2 RM-24 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia E71-1 RM-346 Freescale MXC-300-xx ARM-11 369 MHz
Nokia E71-2 RM-357 Freescale MXC-300-xx ARM-11 369 MHz
Nokia E71-3 RM-407 Freescale MXC-300-xx ARM-11 369 MHz
Nokia E71-5 RM-462 Freescale MXC-300-xx ARM-11 369 MHz
Nokia E90-1 Communicator RA-6 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia E90-? Communicator RA-7 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N-Gage NEM-4 32-bit RISC CPU ARM-9 104 MHz
Nokia N-Gage QD RH-29 32-bit RISC CPU ARM-9 104 MHz
Nokia N-Gage QD RH-47 32-bit RISC CPU ARM-9 104 MHz
Nokia N70-1 RM-84 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N70-5 RM-99 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N71-1 RM-67 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N71-5 RM-112 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N72-5 RM-180 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N73-5 RM-132 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N73-1 RM-133 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N75-3 RM-128 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N76-1 RM-135 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia N76-5 RM-149 32-bit RISC CPU ARM-11 369 MHz + RAP.. cellular CPU
Nokia N77-5 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N77-1 RM-194 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N80-1 RM-92 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N80-3 RM-91 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N82-1 RM-313 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N82-5 RM-314 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N90-1 RM-42 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N91-1 RM-43 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N91-5 RM-158 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N91-6 RM-158 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N91-2 RM-43 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N92-1 RM-100 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N92-2 RM-101 TI OMAP 1710 ARM-926 220 MHz + RAP.. cellular CPU
Nokia N93-5 RM-153 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N93-1 RM-55 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N93i-1 RM-156 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N93i-5 RM-157 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N95-1 RM-159 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N95-5 RM-245 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N95-2 8GB RM-320 TI OMAP 2420 ARM-11 330 MHz + RAP.. cellular CPU
Nokia N96-1 RM-247 STn8815 Nomadik ARM926 332 MHz
Nokia N96-3 RM-472 STn8815 Nomadik ARM926 332 MHz
Nokia N96-5 RM-297 STn8815 Nomadik ARM926 332 MHz

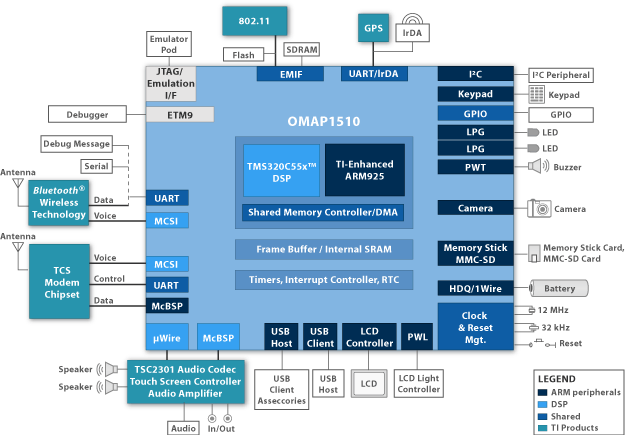

TI OMAP 1510 architecture:

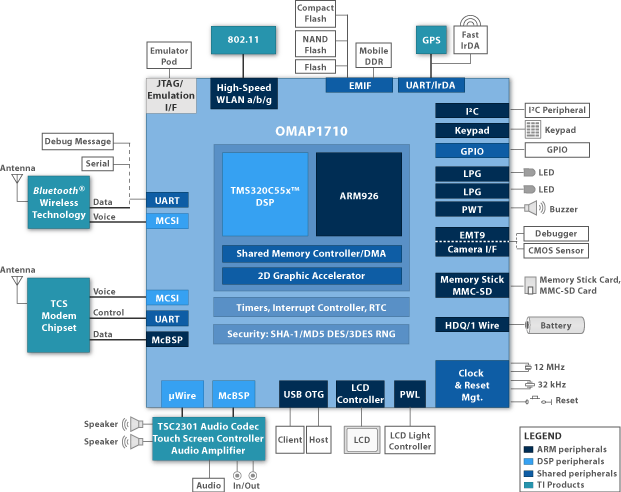

TI OMAP 1710 architecture:

TI OMAP 2420 architecture:

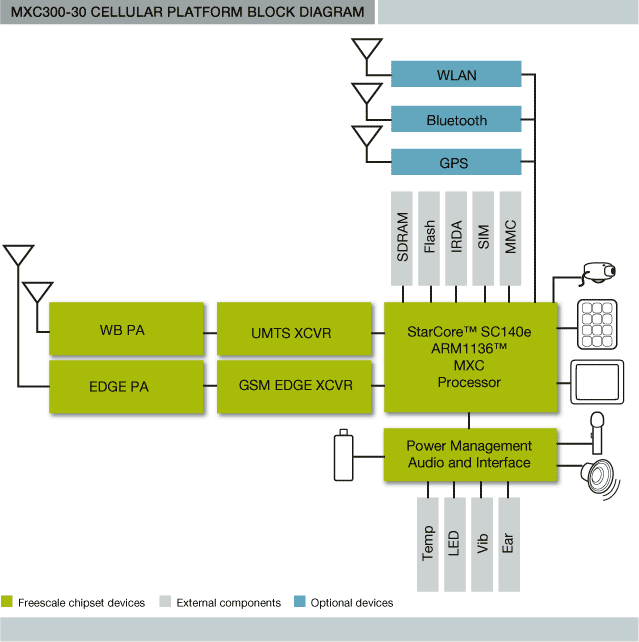

Freescale MXC300-30 architecture:
